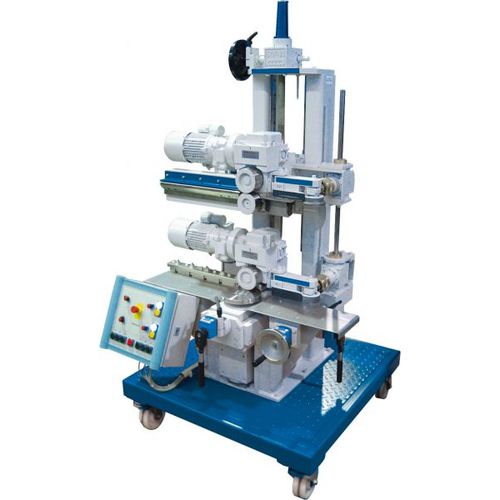

Electric bending machine RBM seriesprofilesemi-automatic
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- profile
- Control
- semi-automatic
- Overall length
1,000 mm
(39 in)- Overall width
1,000 mm
(39 in)- Total height
1,700 mm
(67 in)- Weight
870 kg
(1,918 lb)- Voltage
230 V
- Total power
0.8 kW
(1.1 hp)
Description
Robust round arch curving machine for convex bending of pre-profiled panels for use as dormers, round arches, domes or barrel-vault roofs with and without clip relief in the heights 38 or 50 mm.
Tailored to the double standing seam of the Schlebach profile shaping machines
Combined pressure can be adjusted to the chosen setting using motor or manually
Seperately powered bending units for the female and male profile side
Panels with male profile on both sides in one work cycle
Conical and tapered panels or panels with female profile on both sides can be produced in multiple passes
Width adjustment using handwheel
Working speed continuously variable from 0 to 12 m/min
Optionally also for profile heights 32 and 38 mm by exchanging bending rollers
Large number of possible shapes:
