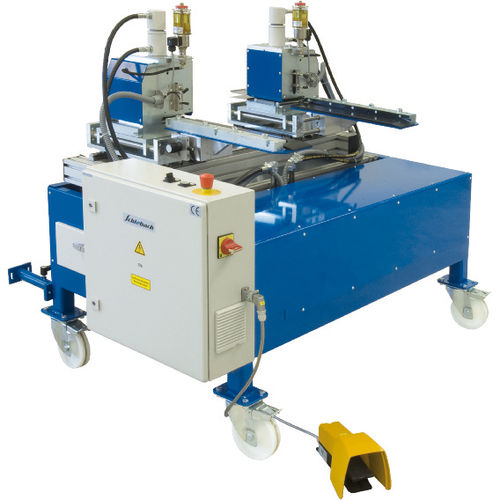

Electro-hydraulic notching machine AK-QUAD

Electrohydraulic notching unit for in-line mounting on profile shaping machines of the QUADRO series or for stand-alone use 2 punching tools Notching for edge folding or notching for cuts after profile shaping Operation via PLC of the QUADRO Custom control system for other notchings, such as rhombic plates and façade shingles Exchangeable notching tools TECHNICAL INFORMATION Supply voltage - 400 V / 50 Hz / 3 Ph. Notching dimensions - 30 x 100 mm 40 x 100 mm 50 x 100 mm Run-in height - 900 mm Processable materials - Titanium zinc up to 1.0 mm Copper up to 1.0 mm Aluminium up to 1.0 mm Sheet steel up to 0.8 mm Stainless steel up to 0.5 mm Dimensions (L x W x H) - 1,135 mm x 1,660 mm x 1,300 mm
