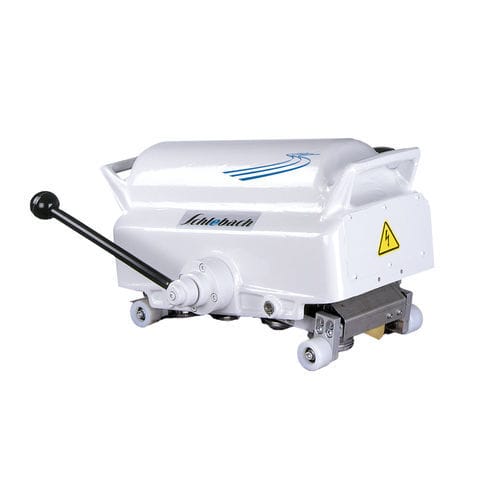

Profile seaming machine PICCOLO

The universal folding machine PICCOLO is used to produce angular and double standing seams in a single operation, for straight or arched profile shapes from a radius of 600 mm. It is required that the pre-profiled shapes are produced on a Schlebach profiling machine. The machine is used for seam profile heights of 25, 32 and 38 mm, other heights on request. TECHNICAL INFORMATION Supply voltage - 230 V / 50 Hz / 1 Ph. 115 V / 50 Hz / 1 Ph. Drive power - 0.3 kW Working speed - 9 m/min Materials - Non-ferrous-metals up to 0.8 mm Steel up to 0.7 mm Stainless steel up to 0.5 mm Dimensions (L x W x H) - 450 mm x 310 mm x 230 mm Weight - 23 kg
