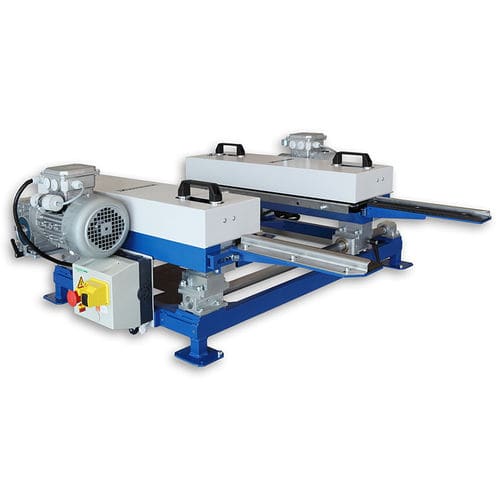

Profile roll forming machine MINI-LIGHT

Compact, light and demountable machine suitable for hard-to-reach construction sites or small workshops to produce double standing seam profiles 25 from blanks or cut lengths in a single pass. Consists of 4 components and can be assembled and disassembled in no time Suitable for all hard-to-reach construction sites Is even suitable for the smallest workshops Can be disassembled and carried by two people Simple assembly without tools Fits in every car/van Double standing seam profile of 25 mm in one work cycle Minimum panel length 500 mm (depending on the material) Smallest axial dimension 50 mm when producing single-sided profiles Tapered, conical or fitting panels in 2 work cycles Manual stepless width adjustment from 250 to 730 mm TECHNICAL INFORMATION Supply voltage - 230 V / 50 Hz / 1 Ph. Drive power - 2 x 0.55 kW Operating speed - 8 m/min Forming stages - 7 stations Shortest panel length - 500 mm Infeed width - 250 – 730 mm Axial dimension - approx. 180 – 660 mm (depending on the material) Infeed height - 286 mm Processable materials - Titanium zinc up to 0.8 mm Copper up to 0.8 mm Aluminium up to 0.8 mm Sheet steel (galvanized and coated) up to 0.7 mm Stainless steel up to 0.5 mm Dimensions (L x W x H) - 1,200 mm x 1,290 mm x 460 mm Weight - 155 kg ASSEMBLY The profile shaping machine can be diassembled into 4 components without the need of any tools: Tie-bar adjustable side Tie-bar fixed side Frame Centre support
