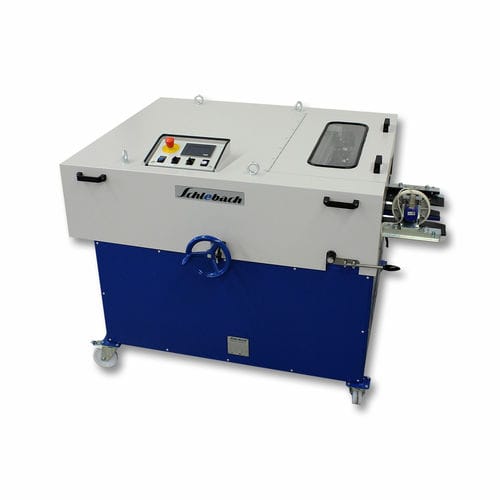

Profile roll forming machine MINI-RSM

Compact machine for producing double standing seam profiles 25 from blanks, cut lengths or directly from the coil with digital length measuring device with a scale in millimeters, a driven belt feeder and a motorized roller shear to execute cross-cuts. Compact version Motorized roller shear to perform automated cross-cuts ahead of profile shaping Control via touch panel Digital length measurement with millimetre precision Roller blades LS to perform longitudinal cuts of parallel fitting panels ahead of profile shaping Special control with touch for convenient entry of lengths and quantities Parallel sheet metal is produced in a single work cycle Minimum panel length 400 mm (depending on the material) Continuous width adjustment 240 - 800 mm Tapered, conical or fitting panels in 2 work cycles Smallest axial dimension 80 mm when producing single-sided profiles Movable on 4 castors TECHNICAL INFORMATION Supply voltage - 230 V / 50 Hz / 1 Ph. Drive power - 1.1 kW Operating speed - 8.5 m/min Forming stages - 7 stations Shortest panel length - 500 mm Axial dimension - approx. 160 – 730 mm (depending on the material) Infeed height - 870 mm Processable materials - Titanium zinc up to 0.8 mm Copper up to 0.8 mm Aluminium up to 0.8 mm Sheet steel (galvanized and coated) up to 0.7 mm Stainless steel up to 0.5 mm Dimensions (L x W x H) - 1,670 mm x 1,395 mm x 1,180 mm Weight - 400 kg
