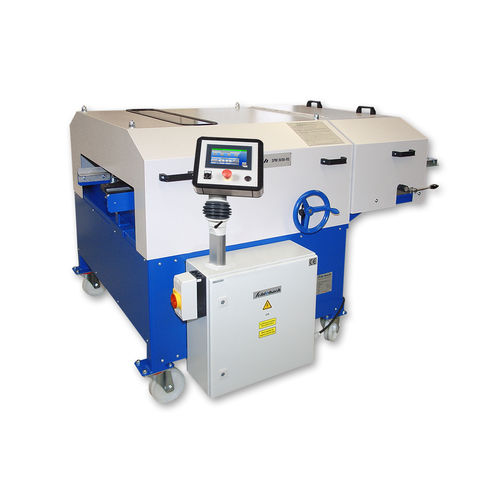

Profile roll forming machine SPM-RSM

Profiling machine of the robust SPM / PMC series with motorized roller shear RSM for cross-cutting before profile shaping for producing double standing seam with a height of 25 mm or 32 mm, either in standard shape (SPM-RSM) or with clip relief (PMC-RSM). Robust and suitable for many double standing seam profile applications Can be retrofitted with additional elements even at a later point in time thanks to the modular construction User-friendly PLC with touch panel Motorized Roller shear RSM for cross-cutting before profile shaping Optionally with roller blade LS for longitudinal cuts ahead of profile shaping With band infeed and clutch for infeed stop Tapered, conical or fitting panels in 2 work cycles Infeed width max. 830 mm, infinitely variable Alternative: Special model SPM-RSM 1000 / PMC-RSM 1000 with max. 1.050 mm Shortest panel length 500 mm (depending on the material) Available for standard double standing seam (SPM-RSM) or with clip relief (PMC-RSM) Roll sets for double standing seam 25 mm as well as 32 mm available Adjustable infeed guides on ball-bearings for material guidance Profile rollers made from high-quality special steel with high level of corrosion and wear protection Resilient mounts of the upper profile rollers ensure impression-free and low-wear production of the panels
