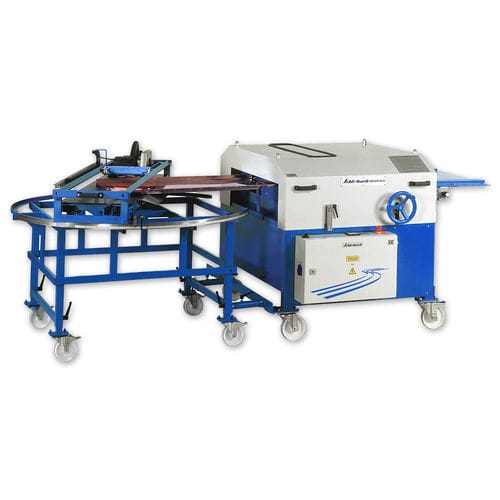

Profile roll forming machine LM-QA60 series

Profiling machine of the robust SPM / PMC series with cross-cutting system QA60 after profile shaping for producing double standing seam with a height of 25 mm or 32 mm, either in standard shape (SPM-LM-QA60) or with clip relief (PMC-LM-QA60). Robust and suitable for many double standing seam profile applications Can be retrofitted with additional elements even at a later point in time thanks to the modular construction User-friendly special control with touch panel Cross-cutting system QA60 to perform manual cross-cuts with circular saw and special saw blade for all non-ferrous metals after profile shaping, pivotable by 60° on both sides Optionally with roller shear RS for cross-cuts before profile shaping, or combination RS+LS for additional longitudinal cutting With band infeed and clutch for infeed stop Tapered, conical or fitting panels in 2 work cycles Infeed width max. 870 mm, infinitely variable Alternative: Special model SPM-LM-QA60 1000 / PMC-LM-QA60 1000 with max. 1.080 mm Shortest panel length 100 mm (depending on the material) thanks to cutting after profile shaping Available for standard double standing seam (SPM-LM-QA60) or with clip relief (PMC-LM-QA60) Roll sets for double standing seam 25 mm as well as 32 mm available Adjustable infeed guides on ball-bearings for material guidance Profile rollers made from high-quality special steel with high level of corrosion and wear protection Resilient mounts of the upper profile rollers ensure impression-free and low-wear production of the panels
