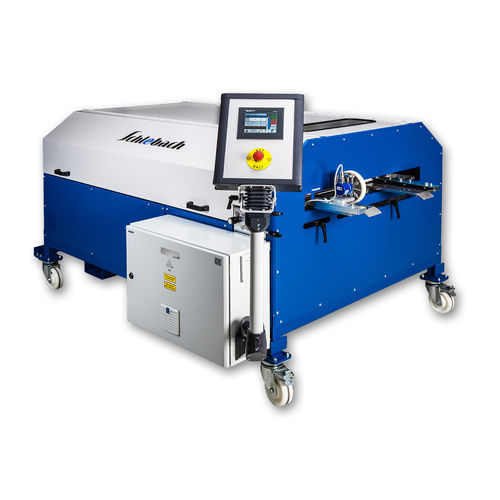

Profile roll forming machine TWIN

Robust, compact and versatile machine variant from the SPM series with cassettes populated on both sides for pivoting. Stepless width adjustment from 240 - 740 mm Axial dimension with parallel sheet metal 170 - 670 mm Can also be used for single-sided passes for tapered and conical shaped panels above 65 mm axial dimension (depending on the profile) User-friendly PLC with touch panel Low length tolerance of approx. 1 - 2 mm Electrically powered roller shears to perform automatic cutting Alternatively with HYT hydraulic cutter and/or QA 60 cross cutting system as machine version HYT: Optionally with roller blade LS for longitudinal cuts of parallel strips ahead of profile shaping Cutting with roller shears, shortest panel length 500 mm Cutting with HYT hydraulic cutter, shortest panel length 200 mm Cutting with QA60 angle cross cutting system, shortest panel length 100 mm Available in the following versions: 2 x double standing seam profile 25 mm for profile shaping two-sided male or female in one work cycle 2 x double standing seam profile 25 mm with clip relief for profile shaping two-sided male or female in one work cycle Profile combination of double standing seam profile 25 mm with and without clip relief Profile combination of double standing seam profile 25 mm and 32 mm with and without clip relief
