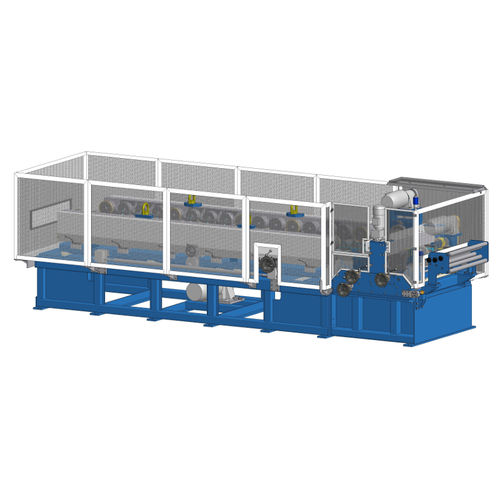

Profile roll forming machine MULTIPRO

The profiling machine MULTIPRO is a versatile and multi-functional profiling system for stationary operations. These basic machine can be utilised to produce complex high quality sheet metal profiles for many different applications in a user-friendly process and with a very short retooling times The profiling machines exchangeable cassette system with 16 forming stations provide for very short retooling times for different profiles. This means that the MULTIPRO machine can be used effectively and economically for a variety of different profile shapes. Due to the clever design, the customer is able to determine the equipment, i.e. the applications of machine on an individual basis. The machine may be extended with additional cassettes or with the vast range of available accessories at any time. The MULTIPRO machine is supported by a robust base frame. Removable guards that are secured by a safety device protect the machine and the operator and simplify the adjustment procedures. The infeed width is continuously adjustable from 300 to 800mm with the well proven system employing a spindle and a hand wheel. The right and left side of the MULTIPRO machines infeed area are equipped with robust infeed guides on ball-bearings that feed the strip material safely and securely. These are separately adjustable to adapt to the outer edges of each profile. As a result, the strip will run smoothly and without backlash. The cross-cutting disc shear in the infeed area consists of a cutting head with hardened roller blades that may be sharpened or even replaced with little effort if necessary.
