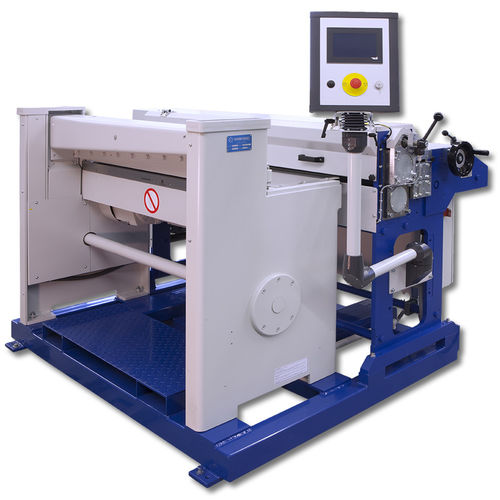

Slitting machine SLMST 1250

Slitting and cross-cutting system for flexible, precise and burr-free cutting of wide metal strips. Productive slitting and cross-cutting system for wide strips 1,250 and 1,500 mm Cross cutting with guilotine shear for high productivity Run-in width steplessly adjustable from 200 - 1,250 mm (1,500 mm) Material thickness up to 2 mm (depending on material and number of cuts) User-friendly PLC control with 7“ touch panel Feed rate 22 m/min (adjustable via frequency converter) Strip in-feed, easy on materials, with specially coated feed rolls Rapid clamping mechanism for damage-free clamping of the blades Blade shafts with 4 pairs of knives (deployable and regrindable from both sides) Adjustable support for lower blade shaft Blade position control using scale, with millimetre precision Blade shaft with 100 mm diameter Optional enhancement up to 10 pairs of knives at reduced cutting capacity Raising of the upper shaft for waste optimization and for cross-cutting operating mode Maintenance-friendly, easier and more efficient blade changing Uniform base frame for cross-cutting system and guillotine shear Forklift pockets for safe transport
