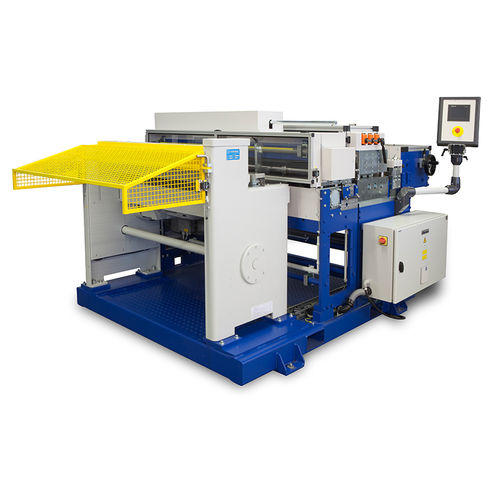

Slitting machine SLMST MASTERCUT 1250

Productive slitting and cross-cutting system with guillotine shear and integrated straightener for wide strips 1,250 and 1,500 mm Run-in width steplessly adjustable from 200 - 1,250 mm (1,500 mm) Material thickness up to 2 mm (depending on material and number of cuts) User-friendly PLC control with 7" touch-panel 6 hard chrome-plated straightening rolls, lower 3 straightening rolls driven Upper 3 straightening rolls for set-up mode and for stop during cutting can be lifted automatically Support for upper and lower straightening rolls Feed rate max. 28 m/min (adjustable via frequency converter) Strip in-feed, easy on materials, with specially coated feed rolls Rapid clamping mechanism for damage-free clamping of the blades Blade shafts with 5 pairs of knifes (deployable and regrindable from both sides) Optional enhancement up to 10 pairs of knives at reduced cutting capacity Adjustable support for lower and upper blade shafts Blade position control using scale, with millimetre precision Blade shaft with 100 mm diameter Autom. raising of the upper shaft for waste optimization and for cross-cutting operating mode Uniform base frame for cross-cutting system and plate shears Forklift pockets for safe transport
