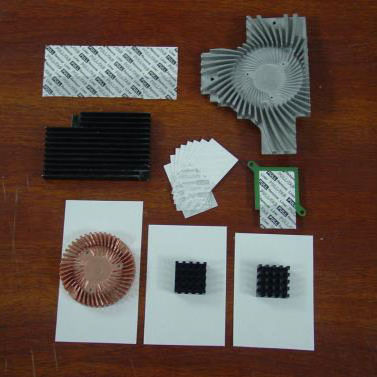

OC-9200 is a thermally conductive phase change material coated on aluminum foil having a soften temperature of 50-55℃. The liquid phase of the material can fill interface irregularities
with much higher efficiency than traditional gap filler. It is easier to handle since it is a free standing film.
OC-9200 is RoHS compliant and conforms to halogen-free standard. It is available with or without adhesive.
Features and Benefit
Thermally conductive phase change material
RoHS compliant
Halogen-free
Color -
Grey
Thickness Range [inch/(mm -
0.008“ (0.2)
Thermal Conductivity [W/mK] -
–
Phase Change Temperature [°C] -
50°C – 55°C
Operation Temperature [°C] -
-40°C~130°C
Halogen-Free [under 700ppm] -
Yes
