- Schlegel Electronic Materials

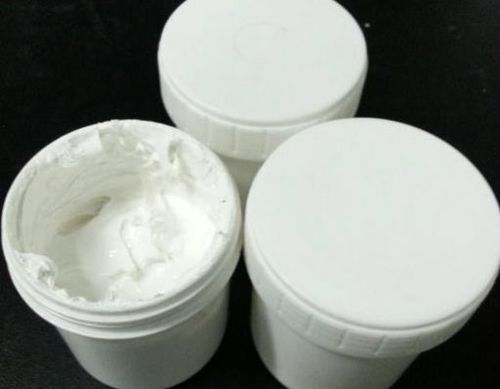

Thermal conductor grease OG-860universalsiliconefor electrical components
Add to favorites
Compare this product
Characteristics
- Function
- universal
- Composition
- silicone
- Product applications
- for electrical components
- Other characteristics
- thermal conductor
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 160 °C
(320 °F)
Description
OG-850 is a thermally conductive grease with low oil bleeding. The unique properties of OG-850 will not dry under normal operating conditions and is suitable for applications involving auto-dispensing equipments or by screen-printing.
The proprietary metal oxide fill silicone oil formula of OG-850 makes for its good thermal conducting performance. Together with its superior wetting properties, OG-850 provides good solution for application where rigorous heat transfer from heat source to spreader is required.
OG-850 is RoHS compliant and halogen-free, offering extra reassurance in applications where hazardous substances are forbidden.
Color -
White
Thermal Conductivity [W/mK] -
0.85
Density [g/cm³] -
2.3
Operation Temperature [°C] -
-40°C~160°C
Halogen-Free [under 700ppm] -
Yes
