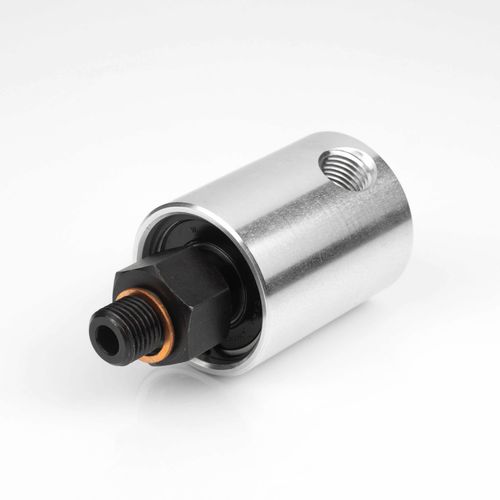

Water rotary joint 368000111Efor airfor oilradial
Add to favorites
Compare this product
Characteristics
- Medium
- for water, for air, for oil
- Other characteristics
- radial, for high flow rates
- Rotational speed
Max.: 3,500 rad.min-1
(557.04 rpm)Min.: 0 rad.min-1
(0 rpm)- Pressure
10 bar
(145 psi)- Nominal size
57 mm
(2.244 in)
Description
Dimensions (installed):
ØO = 57 mm x L = 66,2 mm
Connecting dimensions:
Rotor (axial): 1x G 1/2" A RH
Stator (radial): 1x 1/2" NPT
Pressure / Flow Rate
air: 10 bar
vacuum: 6,7 kPa
hydraulics: 52 bar
Ømedium = 13 mm
max. rpm: 3500 min-1
max. temperature: 120 °C
dry-running: no
width across flats WAF 30
