Linear assembly line Transverse

dispatch

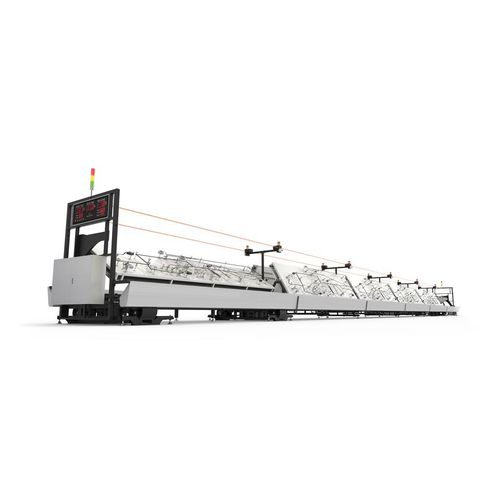

Transverse-Type wire harness assembly lines save floor space and improve safety by eliminating the wide swing area at the ends of traditional “rotary style” assembly lines. Driven by a frequency converter controlled motor, the work boards on each side of the assembly line move in a straight line before reaching the position of transverse linear movement. At this point the work boards at each end of the assembly line move from one side to the other and then continue in a straight line again to complete the cycle. The optional double sided harness board allows both sides of the board to be utilized for production. This results in higher production rates and provides the opportunity for two different types of harnesses to be produced on a single assembly line. Work boards transverse at each end of the assembly line, saving floor space The quantity and size of the work board holders are customer specific Both single and double sided work board versions are available A simple user interface allows customers to set the line speed and keep track of the production rate
