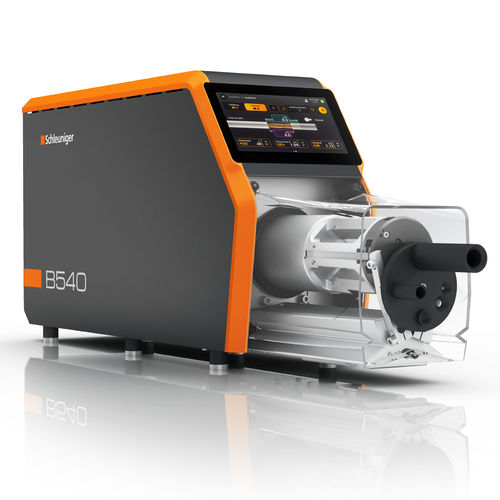

Coaxial cable stripping machine Strip Series B540

bench-topprogrammablesemi-automatic

The programmable Strip Series B540 strip machine is perfectly suited for processing coaxial, multiconductor and single-conductor cables. It processes simple stranded wires and multiconductor cables with a cross section from 0.75 to 100 mm² (18 to 4/0 AWG) and a diameter of up to 17 mm (0.67”), thus achieving a strip length of 100 mm (3.92”) and a pull-off length of 103 mm (4.05”). Thanks to the 4-blade concept, very thin, strongly adhesive and even slightly out-of-round insulation can be processed. The B540 can also be used to precisely strip Kapton and silicone jacketing as well as demanding materials such as PUR, PVC, rubber, Teflon®, Tefzel® or textile glass braiding. Its sophisticated control system, the repeat accuracy and advanced precision mechanics ensure high productivity. The blades and universal clamp jaws on the B540 can be used across the entire range of cable processing applications – machine downtimes due to changeovers are eliminated. Ergonomic operation and programming via a well-arranged, high-resolution 7" color touch screen also contribute to increased productivity. Thanks to the state-of-the-art software interface with new support functions, the B540 is quick to deploy and extremely easy to operate without programming knowledge.
