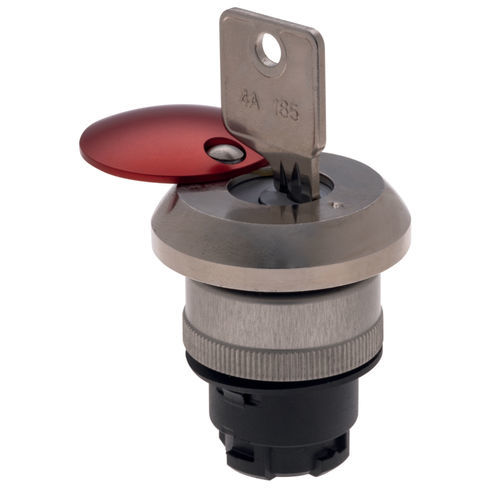

Key lock push-button switch EDRRS40RT

emergency stopIP65

Metal actuators Key unlatching Projection from front of panel 35 mm Ordering data EAN (European Article Number) - 4030661448503 eCl@ss number, version 12.0 - 27-37-12-12 eCl@ss number, version 11.0 - 27-37-12-12 eCl@ss number, version 9.0 - 27-37-12-12 ETIM number, version 7.0 - EC001038 ETIM number, version 6.0 - EC001038 Approvals - Standards Certificates - cULus UKCA General data Standards - EN ISO 13850:2006 Versions - Pushbutton Design - Round Material of the operators - Brass, coated Colour of the operating element - Red Gross weight - 136 g General data - Features Safety functions - Yes Latching - Yes Mechanical data Unlocking - Key unlatching Mechanical life, minimum - 100,000 Operations Actuating stroke - 5 mm Mounting - mounting flange Tightening torque of the screw - 0.6 Nm Mechanical data - Dimensions Height - 35 mm Diameter of cap - 37.5 mm Mounting diameter - 22.3 mm Thickness, of the front panel, minimum - 1.5 mm Thickness of the front panel, maximum - 6 mm Ambient conditions Degree of protection - IP65 Ambient temperature - -25 ... +75 °C Restistance to shock - 30 g / 18 ms Resistant to vibration - 20 g / 10 ... 150 Hz Electrical data Maximum switching frequency - 600 /h
