Digital refractometer ATR P

dual-scalewith temperature controlwith touchscreen

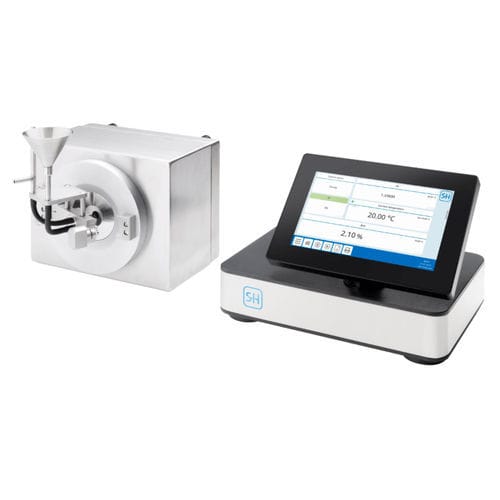

The robust ATR P critical angle refractometer is especially designed for applications in the sugar industry and for the determination of mixing ratios or mass fraction. The system consists of the robust and waterproof ATR P measuring head made from stainless steel and the VariControl unit with a high resolution 7″ TFT Touchscreen. Checkpoints For permanent use in production laboratories High performance and accuracy even in rugged environment Easy handling of sample compartment Measurement of sedimentary samples possible Easy calibration GLP/GMP LIMS integration Data storage space for over a thousand products, each including all measuring methods 21 CFR Part 11 conformity Easy to Use Like all SCHMIDT + HAENSCH instruments, this refractometer is easy in handling while providing highly accurate and reproducible measuring results. Depending on its application, ATR P allows for both single and flow-through measurement. The measuring head can be placed both vertically and horizontally with respect to the sample chamber. As the measuring head can either be used in a horizontal or vertical position, liquid samples containing solid matter can be measured, making the ATR P well-suited for quality control of liquids such as fruit juice. Calibration can be performed easily using a sucrose solution. The ATR P measuring head can be easily connected to a PC or laptop. As always, the proven SCHMIDT + HAENSCH quality includes documentation according to GLP/GMP. Furthermore, the integrated Aquisys 2 software guarantees 21 CFR Part 11 compliance.
