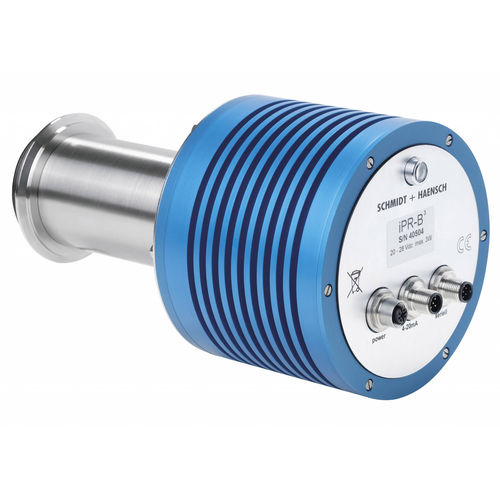

Digital refractometer iPR B3

dual-scaleprocess

The iPR comes with a measuring range of up to 90% Brix (refractive index 1.5200). It is suitable for almost all applications in food production and pharmaceutical industries, but it can also be used for many processes in mechanical and automotive engineering, and in chemical appliances. Checkpoints Highly flexible and easy to use Competitive price/performance ratio Two analog and two digital interfaces Full, simple, flexible, and uncompromising integration into your process Technically easy to implement Maintenance free, minimal maintenance costs Proven for years in a wide variety of applications Easy to Use The special design and electronic equipment make the iPR highly flexible and easy to use. The iPR-B is equipped with two switch outputs to run, for example, a connected valve (max. 1A, 24 DC) or relay. With this feature is it also possible to control the cleaning of the measuring prism via a magnetic valve. The iPR-B measuring head can be installed in pipes, reactors, vessels, and mixing tanks, using different weld-in flanges. Our preferred joint system is VariVent. It allows easy installation through a plug-in clamping method. Some processes may require cleaning of the sensor face. SCHMIDT + HAENSCH offers an optional cleaning nozzle or a specially designed ultrasonic cleaning device. Applications For determination of mixing ratio, the SCHMIDT + HAENSCH Brix refractometer can be applied in the sugar and agricultural industry, in the production of cane and beet sugar, molasses, or in biomass material characterization.
