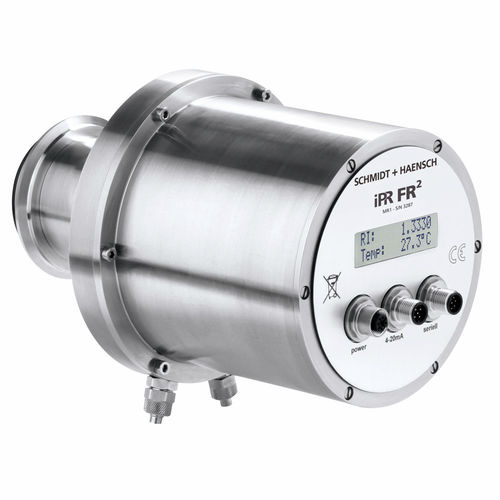

Digital refractometer iPR FR²

dual-scalehigh-accuracyprocess

A flagship in our product folio is the in-line Process Refractometer-Full Range 2. It is outwardly indistinguishable from the iPR-H2 but the integrated optics and electronics are designed to provide a particularly very wide measuring range from 1.3200 – 1.5300 RI (0-100 Brix). Without major compromises in resolution of 0.01 Brix and accuracy from +/- 0.05 Brix. Thanks to its integrated water cooling system, measurements at process temperatures of up to 150 °C are easily possible. Permanent real-time concentration measurement Wide measuring range and broad range of applications User defined scales programmable Simple and certified calibration Suitable for tough conditions and aggressive chemicals, sample temperatures up to 150 °C Compliance with food and beverage regulations and standards Cleaning In Place (CIP) with liquid-based or ultrasonic cleaning device The refractometer iPR FR2 is a stand-alone process sensor with integrated, illuminated display which does not require an external electronic unit. Its special design and electronic configuration make it highly flexible and easy to operate. The programming with Microsoft Windows software is also straightforward. Optional Data Logger is also available. The iPR-FR2 measuring head can be installed in pipes, reactor vessels, mixing tanks, kettles, boiling pans, and evaporators, using different weld-in flanges. The iPR-FR2 delivers lab quality industrial measurements for a range of industries, including food and beverage, chemical, pharmaceutical, medical, and packaging industries.
