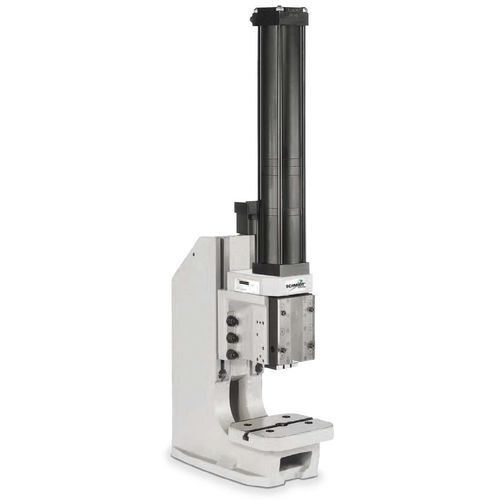

Hydro-pneumatic press 62

assemblyramprocess

The application determines selection of the press system. Consideration is given to the flexible design of the assembly location taking into account the ergonomic and safety aspects. These characteristics are achieved by means of a finely adjusted, modular type product range. The efficiency and increased process reliability of these press systems have been proven many times, in single applications, semi-automated assembly systems and have been integrated into automated production lines. Features Easy and accurate positioning of tools due to the precise alignment between ram bore and the ground fixture mounting plate. * The force output preselector allows reducing the pressure for the power stroke to 1 bar. This reduces the nominal press force to 1 / 6 of the maximum force. * The end positions of the ram can be sensed via the inductive proximity switches. * No mechanical compression spring in the cylinder of the hydro-pneumatic system, providing a long service life * Low maintenance resulting in high productivity * Long service life and precision due to maintenance-free guides * Tool protection due to smooth switchover from rapid approach stroke to power stroke * Additional safety when using heavy tools due to the optional ram drift lock device for retention of ram in home position. * Low noise level (< 75 dBA)
