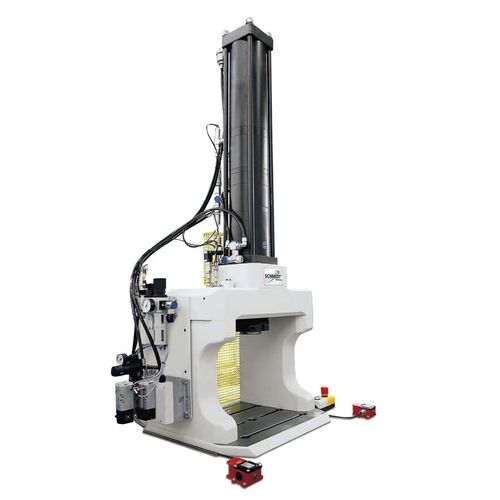

Hydro-pneumatic press 74formingframeH-frame
Add to favorites
Compare this product
Characteristics
- Operation
- hydro-pneumatic
- Function
- forming
- Structure
- frame, H-frame, round ram
- Other characteristics
- with stroke force monitoring
- Force
100 kN, 220 kN
- Opening
350 mm
(14 in)- Stroke
Max.: 100 mm
(3.937 in)Min.: 12 mm
(0.472 in)- Table width
480 mm
(19 in)- Table length
640 mm
(25 in)- Weight
374 kg, 376 kg, 730 kg, 760 kg
(825 lb, 829 lb, 1,609 lb, 1,676 lb)
Description
SCHMIDT® HydroPneumaticPress
H-frame design with and without force / stroke monitoring
Features
Stable frame with low bending for the absorption of high forces
Flexible tool location in the fixture mounting plate due to replaceable centering bushing with precision bore
The large working area offers sufficient space for large tools
The force is determined via a pressure transducer with force /stroke monitored presses
Options
Additional charge applies
1) Total stroke / power stroke options on request
2) Typical values; can vary ± 3 mm due to casting and production tolerances
Catalogs
Schmidt® Presses
85 Pages
SCHMIDT® HydroPneumaticPress
14 Pages
