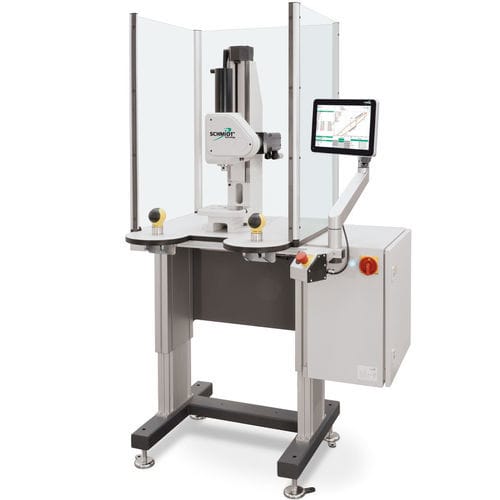

Electric press 345

assemblyverticalwith stroke force monitoring

The use of electric drives instead of pneumatic or hydropneumatic driven cylinders is a modern advancement in assembly technology. SCHMIDT Technology combined its proven rack & pinion and ServoPress experience to create a new electric drive technology, providing high efficiency, full programmability and precision in a flexible pressing system. SCHMIDT® ElectricPress 345 is used in combination with the SCHMIDT® PressControl 700 for the force-displacement-monitoring press system, e.g. in industries E-mobility Gearbox assembly for e-bikes Assembly of battery cores Medical technology Riveting surgical scissors Assembly of dental instruments Drive technology Rotor-stator assembly Gear-axle assembly ≤ 1 µm resolution drive control 200 mm/s ram speed (max.) Characteristics Simple parameterisation minimises commissioning time Quick changeover procedures due to retrievable operating profiles Increased flexibility Cost reduction of tools and their wear due to free, precise positioning. The low noise level provides a stress-free working environment. The design-related non-existent stick-slip effect optimises the assembly process compared to pneumatic drives, especially at low speeds.
