Pneumatic press 34

formingjoiningassembly

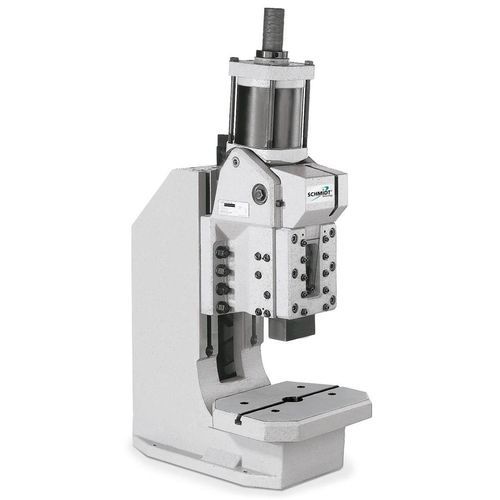

The SCHMIDT® PneumaticPress product family in toggle lever design with maximum force at the stroke end is a modular system that optimally meets the requirements from the areas of forming, joining and assembly in the press force range from 15 to 60 kN. In combination with the SCHMIDT® PressControl 75 or 700 control system, the presses become EC type-tested, CE-compliant workstations, optionally with process monitoring. The press systems can be used in single cycle as well as in automatic mode. Features * Cross hole with locking screw in the press table for safe fixture of tool * Accurate adjustable ram position via fine adjustment (type 33) * T-slot with set screw in fixture mounting plate to secure bottom tool Options • Series standard with no additional charge O Additional charge may applies 1) Typical values; can deviate by ± 3 mm due to casting and production tolerances Special designs Nickel plated – cast parts are electroless nickel plated, steel components black oxide finished, aluminum anodized, precision steel surfaces are untreated Custom Paint – press and column can be painted to customer's color specification Bores for adapting tooling – customer specific sizes can be supplied
