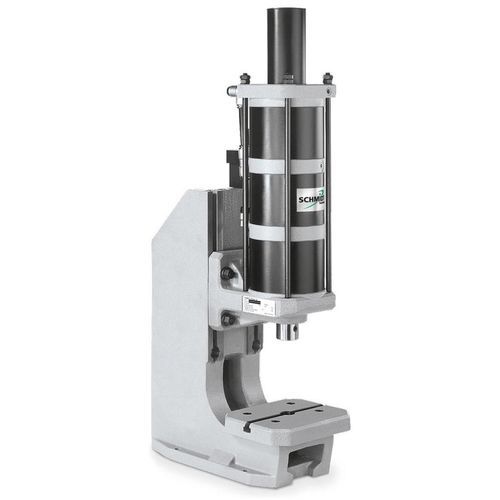

Pneumatic press 27 series

formingjoiningassembly

The product family SCHMIDT® PneumaticPress direct-acting with constant force progression is a modular system which optimally meets the requirements in the areas of forming, joining and assembly in the press force range from 1.6 to 43 kN. In combination with the SCHMIDT® PressControl 75 or 700 control system, the presses become EC type-tested, CE-conform workstations, optionally with process monitoring. The press systems can be used in single cycle as well as in automatic mode. Features * Round anti-rotational ram * Adjustable ram position in BDC by means of precision lower stop (1 division line = 0.05 mm) on scale * T-slot with locking set screw in fixture mounting plate Options O variant with surcharge 1) Typical values; can deviate by ± 3 mm due to casting and production tolerances Special designs Nickel plated – cast parts are electroless nickel plated, steel components black oxide finished, aluminum anodized, precision steel surfaces are untreated Custom Paint – press and column can be painted to customer's color specification Bores for adapting tooling – customer specific sizes can be supplied
