Pneumatic press 323 series

formingframesquare ram

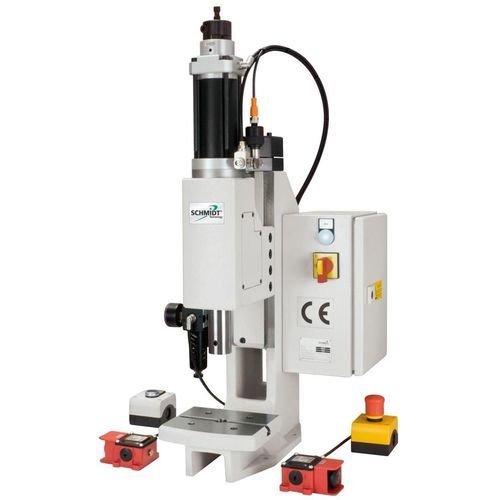

SCHMIDT® PneumaticPress with force / stroke monitoring are offered as complete systems with the SCHMIDT® PressControl 700 and 7000. These systems are characterized by sensors and signal amplification integrated in the press head. These signals are evaluated in real time. Features Direct forces are measured due to the force sensor integrated­ in the ram. Insensitive against side loads Force and displacement sensors are immune to EMI and environ-mental contamination A measuring data amplification integrated in the press head provides short transmission paths of unamplified signals Anti-rotational square ram with two fully adjustable guiding gibs for precise work and for non-guided tools (not for type 320, which incorporates special roller guided anti-rotation protection for the ram Weld constructed steel frames to minimize frame flex. Optionen O Additional charge applies 1) Typical values; can vary ± 3 mm due to casting and production tolerances 2)With Press type 320 only in combination with frame type No. 7-600 with 168 mm, 208 mm or 248 mm Special designs Nickel plated – cast parts are electroless nickel plated, steel components black oxide finished, aluminum anodized, precision steel surfaces are untreated Custom Paint – press and column can be painted to customer's color specification Bores for adapting tooling – customer specific sizes can be supplied
