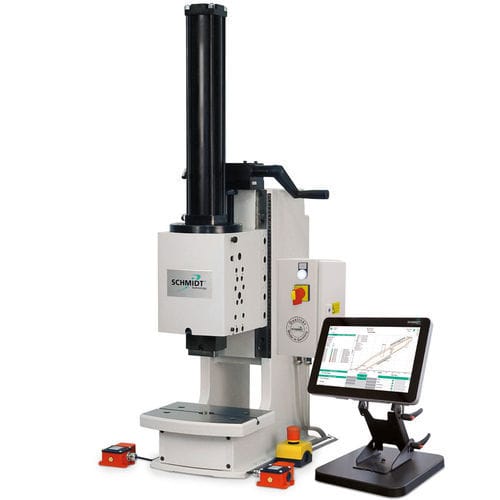

Hydro-pneumatic press 365

bendingramframe

SCHMIDT® HydroPneumaticPress with continuous force / stroke monitoring are offered as complete systems with the control unit SCHMIDT® PressControl 700 and 7000. The special feature of these systems is the sensor technology and signal amplification integrated in the press slide. These signals are evaluated in real time. Features Direct forces are measured due to the force sensor integrated in the ram. Insensitve against side forces. Signal readings are not affected by outside interference. A measuring data amplification integrated in the press head provides short transmission paths of unamplified signals. Precision guide rails for precise working. Bilaterally adjustable,play-free gibs, precision machined bore for tool location. No die-set required. Weld constructed steel frames to minimize frame flex Also available in H-Frame design for No. 374 and No. 376: Stable frame with low bending for the absorption of high forces. Flexible tool location in the fixture mounting platen due to replaceable centering bushing with precision bore. The large working area offers sufficient space for large tools.
