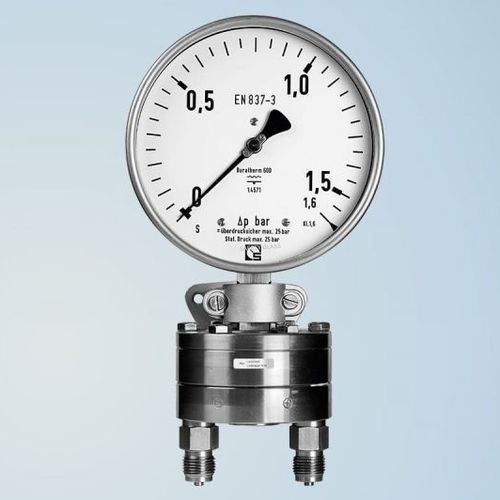

Differential pressure gauge DKU 160

dialthreadedG 1/2

The measuring chamber is separated trough a thin, corrugated metal membrane. Pressure will be the applied to both sides and additionally on one side there will be measuring pressure applied. Through a pass through bellow the bending of the membrane will be transferred to the movement. On the opposite side there will be a compensation to balance out the applied forces. Application purpose Differential pressure gauges are especially well suited to measure gaseous and fluid mediums that also can be aggressive. The display accuracy is 1,6% or 2,5 % from the upper range level. Diaphragm, measuring chamber and connection made of stainless steel Bayonet lock case made of stainless steel Threading 2 x 1/2″ BSP or speical threading on request
