Linear positioning stage NH Series

manualsingle-axismicrometer-driven

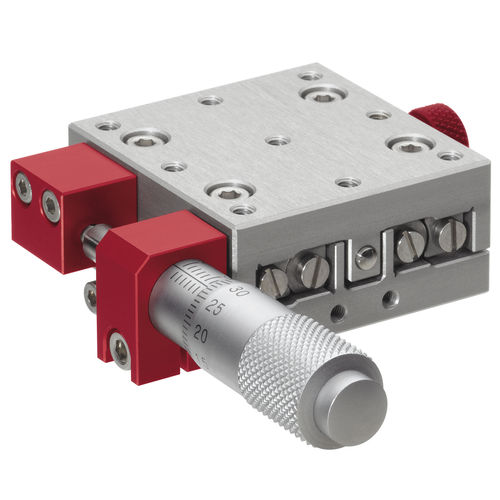

The NH series positioning table is a single axis stage featuring SCHNEEBERGER linear guideways Type R2-RF (with or without micrometer). These units can be used in double axis configuration (when two same sized models are used) and feature standard stroke lengths of 13/13 and 25/40 mm. All models are provided with a clamping system on the side of the stage, with table parts made out of anodized aluminum and linear guides in steel (for added corrosion resistance) and were designed for manual mounting in any position, via 0.01 mm accuracy micrometer. Table parts are lightly loaded onto the micrometer screw, via tension spring, and the micrometer can also be placed below stage, when the unit is mounted in vertical position.
