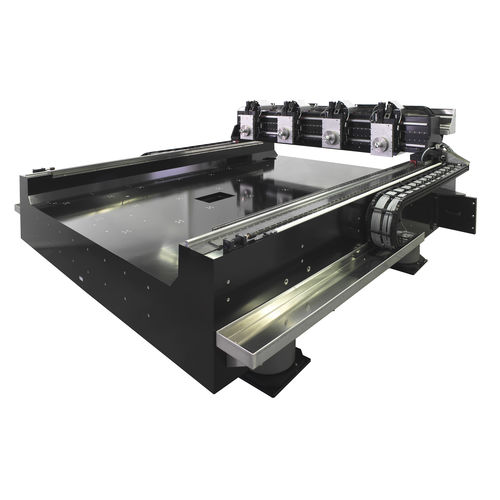

3-axis positioning system

portalfor wafer inspection and metrologyhigh-accuracy

Customized Flat Panel Display solutions Our solution for the demanding FPD industry covers processes from AOI to array tester over photo spacer measurements. More than 800 systems are installed worldwide. Some systems are directly manufactured and assembled in Asia In order to reduce to TCO SCHNEEBERGER innovates by integrating our own alternative to granite: Mineralcast. This caste high damping structure helps to optimize, for example, the total system weight which reduces the handling and shipping costs. Learn more about Mineral cast Typical specifications for "large format systems" at POI* - Configuration: XYZ or + Z (gantry) - Travel: up to 3500 x 2700mm - Accuracy: ≤ 10 µm (over TIR, mapped) - Repeatability: ≤ 2 µm - Stability: ≤ 10 nm (within 1s ptp) - Move & Settle: < 500ms for 300mm - Cst velocity: < 0.01% at <100mm/s - Straightness: < 20um over 3000mm - Flatness: < 20um over 3000mm
