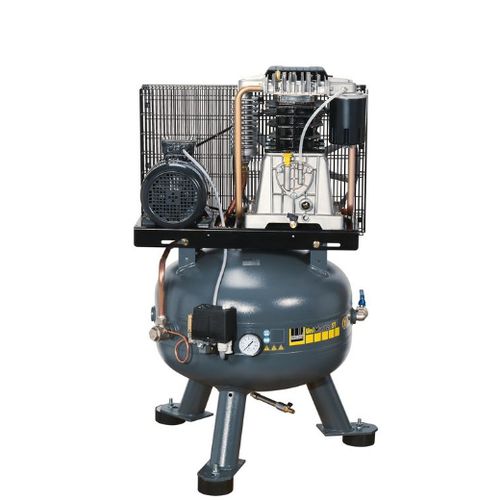

Piston compressor UNM STS 660-10-90

airelectrically-poweredstationary

Description V-belt driven, two-stage 2-cylinder piston compressor 15-year rust guarantee on the vessel with inner coating With rubber dampers for extra stability With intermediate cooler and aftercooler Easily accessible condensate drain cock Air outlet 3/4"i with air shut-off cock Vertical design saves space Flexible extension option by retrofitting a sound absorbing cover Simple, cost-saving inspection of the vessel through hand hole Vessel manufactured in accordance with AD2000 standard Technical details GTIN/EAN - 4011666929334 Article number - 1121580537 Pressure - 10 bar Suction power - 660 l/min Inflation performance - 520 l/min Drive power - 4 kW Rotational speed - 1,025 rpm Vessel volume - 90 l Weight - 123 kg Noise - 78 dB(A) Dimensions (WxDxH) - 750x705x1.170 mm
