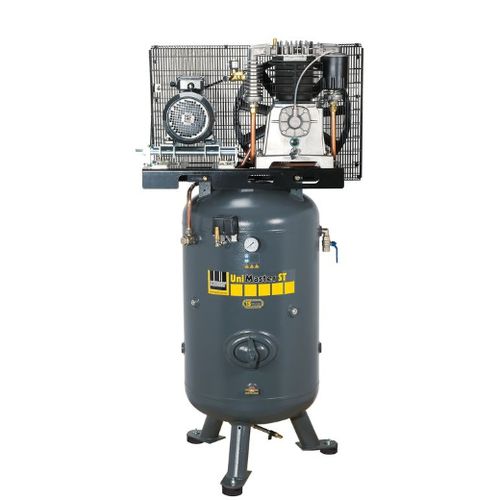

Piston compressor UNM STS 1250-10-270

airelectrically-poweredstationary

Description V-belt driven, two-stage 2-cylinder piston compressor 15-year rust guarantee on the vessel with inner coating With rubber dampers for extra stability With intermediate cooler and aftercooler Easily accessible condensate drain cock Auxiliary sleeve with blind plugs for easy extension Air outlet 3/4"i with air shut-off cock Vertical design saves space Flexible extension option by retrofitting a cold dryer Simple, cost-saving inspection of the vessel through hand hole Vessel manufactured in accordance with AD2000 standard Tip: It is strongly recommended that all compressors above 5.5 kW be started via an automatic star-delta switch. Technical details GTIN/EAN - 4011666000651 Article number - 1121570234 Pressure - 10 bar Suction power - 1,250 l/min Inflation performance - 980 l/min Drive power - 7.5 kW Rotational speed - 1,240 rpm Vessel volume - 270 l Weight - 246 kg Noise - 84 dB(A) Dimensions (WxDxH) - 975x705x1.875 mm
