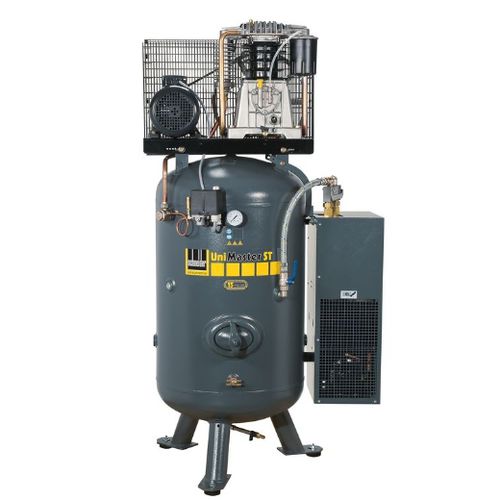

Piston compressor UNM STS 580-15-270 XDK

airelectrically-poweredstationary

V-belt driven, two-stage 2-cylinder piston compressor 15-year rust guarantee on the vessel with inner coating With rubber dampers for extra stability With intermediate cooler and aftercooler Easily accessible condensate drain cock Auxiliary sleeve with blind plugs for easy extension Air outlet 3/4"i with air shut-off cock Vertical design saves space System ready for operation, with integral cold dryer Dry compressed air for perfect working results Flexible extension possible with simple retrofitting of sound absorbing cover Simple, cost-saving inspection of the vessel through hand hole Vessel manufactured in accordance with AD2000 standard Technical details GTIN/EAN - 4011666929426 Article number - 1121570239 Pressure - 15 bar Suction power - 580 l/min Inflation performance - 470 l/min Drive power - 4 kW Rotational speed - 915 rpm Vessel volume - 270 l Weight - 213 kg Noise - 78 dB(A) Dimensions (WxDxH) - 945x705x1.800 mm
