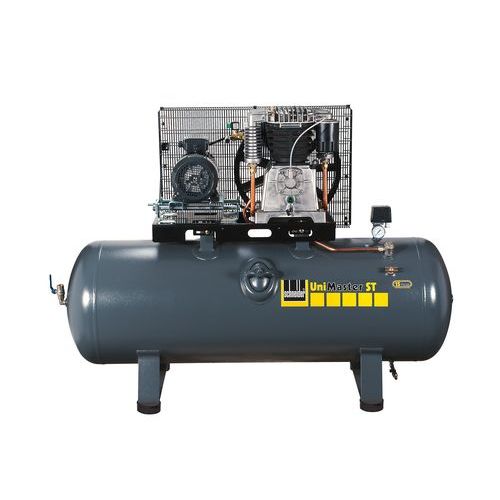

Piston compressor UNM STL 1250-10-500

airelectrically-poweredstationary

V-belt driven, two-stage 2-cylinder piston compressor 15-year rust guarantee on the vessel with inner coating With rubber dampers for extra stability With intermediate cooler and aftercooler Easily accessible condensate drain cock Air outlet 3/4"i with air shut-off cock Low installation height particularly suitable for use in rooms with low ceilings Simple, cost-saving inspection of the vessel through hand hole Vessel manufactured in accordance with AD2000 standard It is strongly recommended that all compressors above 5.5 kW be started via an automatic star-delta switch. Technical details GTIN/EAN - 4011666000583 Article number - 1121580516 Pressure - 10 bar Suction power - 1,250 l/min Inflation performance - 980 l/min Drive power - 7.5 kW Rotational speed - 1,240 rpm Vessel volume - 500 l Weight - 304 kg Noise - 84 dB(A) Dimensions (WxDxH) - 1,950x625x1,380 mm
