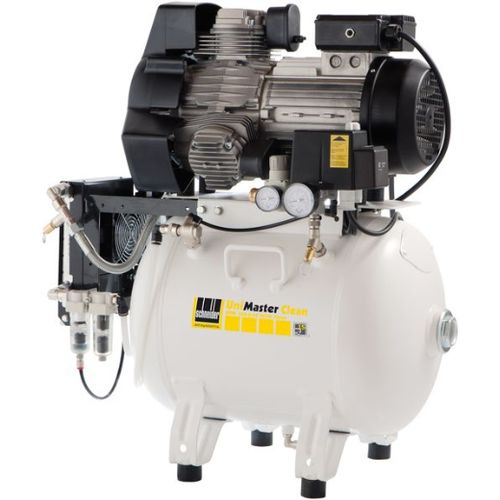

Piston compressor UNM 360-8-40 WXM

airelectrically-poweredportable

Close-coupled 3-cylinder piston compressor Mechanical operating hours counter for checking the actual runtime Compressed air cooler, prefilter and microfilter for optimal operation of the membrane dryer Maintenance-free membrane dryer for dried and cleaned compressed air 15-year warranty against rust and corrosion on vessels Equipped as standard with all fittings: Condor MDR3 pressure switch with operating hours counter, motor protection, safety valve, condensate drain cock, cable and plug Oil-free, low-maintenance power unit Low operating temperature with optimal cooling ensures a guaranteed 80% duty cycle Minimal noise with decoupled unit Technical details GTIN/EAN - 4011666025852 Article number - DGKH342010 Pressure - 8 bar Suction power - 360 l/min Inflation performance - 225 l/min Drive power - 2.2 kW Voltage - 230 V Rotational speed - 1,450 rpm Tank vol. - 40 l Weight - 58 kg Noise - 66 dB(A) Dimensions (WxDxH) - 710x410x810 mm
