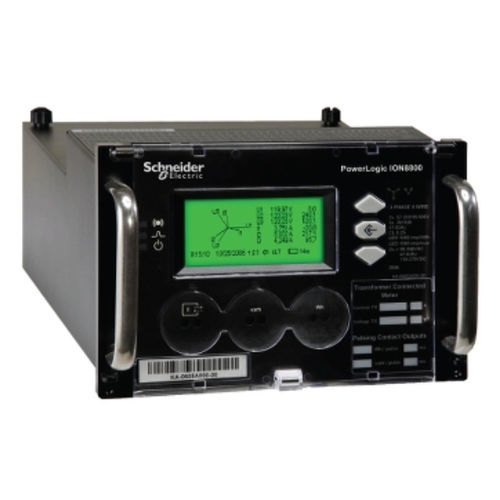

Three-phase electric energy meter PowerLogic™ ION8800

rack-mountdigitalRS-485

Advanced metering and advanced utility metering The PowerLogic ION8800 meter is available in three different base models: The ION8800A is an energy/tariff meter with EN50160 compliance monitoring, waveform capture, and transient detection. The ION8800B is an energy/tariff meter with EN50160 compliance monitoring. The ION8800C is a basic energy/tariff meter. Standard features include an IEC61107 optical port, Form C digital outputs, IEC 62053-22 class 0,2S metering, and alarming. Optional features include expanded memory, digital inputs, Form A digital outputs, and a field-replaceable communications module capable of supporting any or all of the following: selectable RS-485/RS-232 port, internal modem, Ethernet port, and fibre. Characteristics DIN 43862 (19-inch rack mount) IEC standard for easy retrofit into existing systems Essailec connector with common measurement and energy pulsing pin-out High-accuracy metering in compliance with IEC 62053-22 Class 0,2S Power quality compliance monitoring: IEC61000-4-30 class A, EN50160, IEC61000-4-7/4-15, CBEMA/ITIC Detection and capture of dips and swells Waveform recording at 1024 samples/cycle; 20 µs transient capture Inter-harmonics measurements (ION8800A) 24 setpoints for single/multi-condition alarms and control functions with 1 second response Communication module supports: fibre, Ethernet, modem, RS-232/485, RS-485 Protocol support for Modbus RTU slave/master, Modbus TCP slave/master, DNP 3.0, MV-90, DLMS Ethernet and modem gateways to 31 devices on RS-485 port High-speed Ethernet communications (optional) with on-board web server Email for sending data logs and alarm notification
