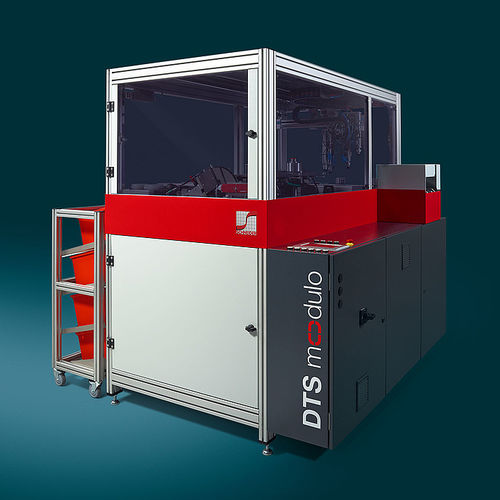

Automatic deblocker for ophthalmic lens production DTS MODULO, DBA MODULO

INFORMATION Designed as a perfect supplement to the CCB Modulo, the DTS Modulo provides a smooth and efficient technology for deblocking and tape-stripping of two lenses simultaneously. After pretreatment, the fast handling system transfers the lenses into the working chamber. The EFT layer is removed with warm water thus separating the lenses safely and very fast from the block pieces without any residue. In the following process step the tape is removed without the danger of lens breakage. The block pieces are sorted in boxes and prepared for quick reuse in the CCB Modulo, guaranteeing maximum ease of use. The tape and EFT material are collected using a band filter system and can be disposed of easily. Suitable for all lens materials, the DTS Modulo is the optimal choice to meet the demands of mid- and highperformance labs. Maximum value can be gained due to an on-board interface philosophy that allows connection to the automated Modulo system. BENEFITS Fully automated deblocking and tape-stripping in one unit Automated cleaning and sorting of block pieces Highest throughput Lowest danger of lens breakage Easy plug & play installationLow maintenance Supports the new cognitive Modulo machine philosophy
