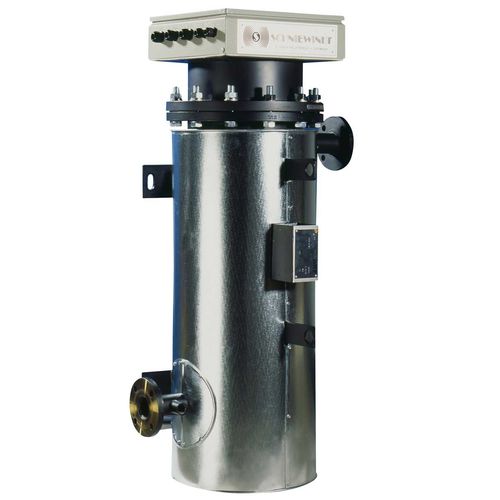

Gas preheater CSN®

airoilelectric

CSN® Pre-Heater consists of one or more CSN® Flow Heaters, which are equipped with a valve and a pump, as well as stand-alone controller. Tasks Combustion engines requiring immediate operational readiness must be preheated before starting. The well-known cold start problems are eliminated and the engine can be operated at full load from the beginning. Furthermore, cold start wear is considerably reduced. Typical fields of application for this type of pre-heater units are e.g. emergency power units (Diesel engine + generator) or locomotives and ships (Diesel engine for propulsion). Unit functions While the combustion engine is cold and out of operation, the cooling agent is pumped through the cooling loop of the combustion engine and through the circulation heater. The cooling liquid is circulated by a pump mounted on the pre-heating unit. Preheating of the cooling circuit provides a homogeneous heating of the motor. Once the cooling system is heated, the temperature is held constantly at the desired set-point. The heater is switched off, when the engine is in operation. A check valve mounted on the heater prevents the coolant to circulate through the heater during normal operation of the engine. Unit Design / components: Circulation heater module with compact design Heaters: Screw-plug immersion heater G 2” with tubular elements Ø 11.5 Circulation pump Check Valve Adjustable Thermostat Safety temperature limiter Control panel with electric control and safety elements Flow switch (optional) Safety valve (optional) Thermal insulation (optional) Mounting saddles Unit is completely assembled and electrically wired Major advantages
