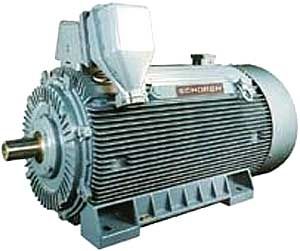

AC motor asynchronousfor marine applicationshigh-speed
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Applications
- for marine applications
- Other characteristics
- high-speed
- Power
500 kW
(679.811 hp)
Description
Technical features
We supply internally and surface-ventilated low-voltage cage induction machines in standard and special designs.
General Data
IP23 and IP 55 - Efficiency class IE2
Frame size 63 to 560
Degree of protection from IP23 to IP65
Single and change-pole speeds
Types of protection Ex e, Ex n
Ex d for ambient temperatures as low as – 50 °C
Converter-controlled machines
Energy-saving designs (optimised efficiency)
High-Speed Machines up to 15,000 rpm and 500 kW
Motors for marine applications to regulations of international classification societies
