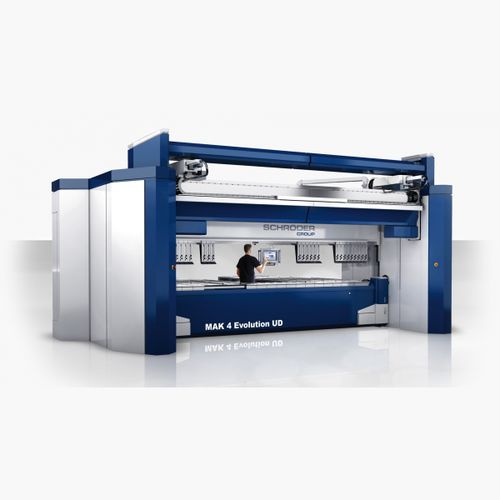

Sheet metal swivel folding machine MAK 4 Evolution UD

electricautomatic

Industrial sheet metal folding with state-of-the-art Up-and-Down technology – the MAK 4 Evolution UD features interesting details and extra options such as particularly rigid frames and main modules, extended opening heights (850 mm clamping beam, strong drives, speed optimizer, float-free planetary drive motors, options for back and front stops, or a safety PLC with light barriers to make the work areas safer. Thanks to this machine we can achieve extremely high levels of automation. Details Software control POS 3000 3-D Graphic control on swivelling arm Radius function Remote maintenance via internet Back gauge system Positioning gauge 1700 mm as U-shape, segmented support plates with steel balls Lateral angle gauge right and left side 1500 mm (outside) Suction plates in gauge table, controlled via POS 3000 2 pneumatic pop-up square arms assembled aisle side, program-controlled Gauge axis in front Clamping beam Clamping beam stroke 1090 mm Clamping beam geometry 180° Hydraulic tool clamping of the clamping beam Folding beam Up’n Down folding beam, automatically controlled via POS 3000 Pneumatic tool clamping device Motorized folding beam adjustment 180 mm Motorized folding center adjustment 100 mm Central crowning device motorized Center point adjustment, converter-controlled drive Work safety Protection via light barrier controlled by safety-PLC for operation from the rear Safety package for operation from the front, incl. 2nd foot switch on rail for lateral movement (in combination with tool changer clamping beam no operation from the front possible) Others Foot switch Anchor plates incl. dowels Tools Standard machine without tools
