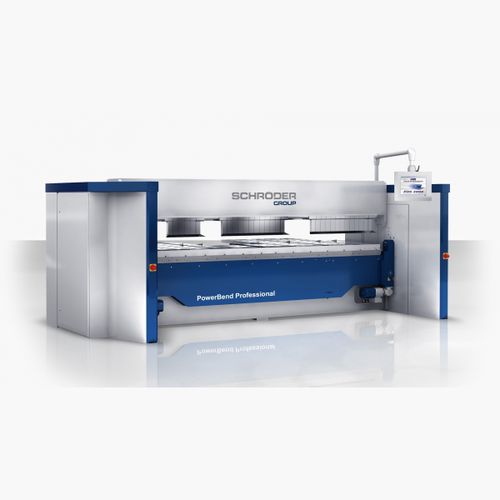

Sheet metal swivel folding machine PowerBend Professional

hydraulicCNClarge

Success Story Part II: „THE NEW“ PowerBend Professional is our revised folding machine with even more flexible application possibilities. It is the professional solution for thin sheet metal processing and continous operation in large workshops, mid-sized companies and the industry. New features 2 servo drives for continous commuting of the folding beam for Up and Down Servo-controlled folding beam adjustment More precise and faster positioning of the rotation point, servo-controlled Safety package Plus LED status display Energy-efficient drives according to IE3 Optimized for industry 4.0 Prepared interface to product handling systems Completely new machine design and swivelling panel Details Software control POS 2000 Professional graphic control on swivelling arm Radius function Remote maintenance Clamping beam Clamping beam stroke 500 mm Clamping beam geometry 48° or 180° Drive: 2 x 2,2 kW (65 mm/sec) axis with recirculated ball screws Axis inclination of the clamping beam Hydraulic tool clamping device for clamping beam Folding beam Pneumatic tool clamping device for folding beam Motorized folding beam adjustment 150 mm Motorized folding center adjustment +80/- 20 mm Central crowning device, motorized Others Foot switch Anchor plates incl. dowels Standard machine without folding- and clamping beam tools LED status display Bottom beam blade, ca. 1100 N/mm² surface-hardened (nitrated), one piece with finger grooves, minimum gauge 10 mm
