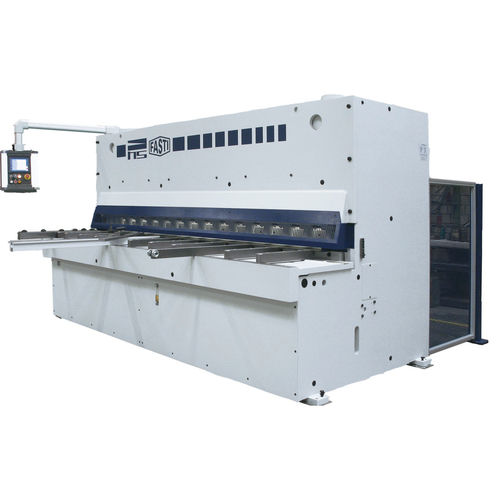

Hydraulic shear 528

sheet metalguillotinemotorized

The hydraulic guillotine 528 features high static and dynamic rigidity thanks to sturdy components such as lateral frame, sheet support table and drive unit. Hence, it meets all prerequisites for an exact cut with high productivity. Details Software control CGS 80 mounted on swivelling arm, 8″ touchscreen display Operating mode: single stroke, continous stroke, inching mode Blades designed for steel, tensile strength approx. 700 N/mm² Cutting edge illumination Flexible table Angle gauge on the right with scale, 1000 mm from blade edge Table extension 1000 mm Central blade gap adjustment via handwheel on left side of the machine Automatic calculation of cutting angle Motorized back gauge MAH – 52, adjustment range 10 – 1000 mm via recirculated ball screws Obligatory CE safety package: rear guarding via 3-beam light barrier incl. side protection grid Attention: From sizes 30/13 with motorized blade gap adjustment in standard equipment
