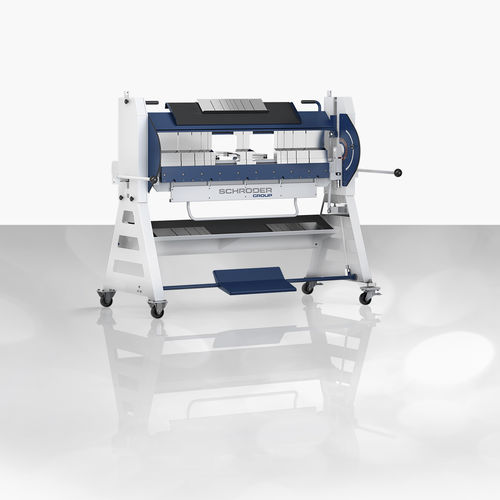

Sheet metal swivel folding machine ASK 3

manual

The segment folding machine type ASK 3 ist the new manual folding machine of the 3rd generation. It is the versatile solution for sheet metal processing in workshops and on the construction site. Alongside the standard equipment such as the patented quick clamping device with eccentric this new version of the ASK has optionally a muti-stage clamping-beam drive for four different tool heights or rather up to 180 mm free space at the clamping beam, up to 120 mm at the the bottom beam and up to 142 mm at the folding beam. The clearances for tools expand the product range tremendously and increase flexibility. Details Patented quick clamping device with eccentric for quick changing of clamping and folding beam tools Mulit-stage clamping beam drive for four different tool heights Goat’s foot blade, H = 130 mm, 30°, sharp, clearance 26 mm, foot width 40 mm, free space 110 mm, segmented incl. corner parts, material strength 700 N/mm² Bottom beam blade, free space 55 mm, segmented incl. corner parts Combi-folding blade, H = 120 mm, 12/15 mm, free space 77 mm, segmented incl. corner parts Segmentation of tools for 1,000 mm: 30/50/70/100/150/200/300 mm + 2 x 75 mm corner parts; with 1250 mm length plus 250 mm segments, with 1500 mm length plus 2 x 250 mm segments Clamping beam stroke 110 mm Clamping beam with tool storage function Stand with depositing plate incl. tool storage function Angle indicator Angle gauge Stacking table for tools Foot pedal for opening and closing of clamping beam Machine with 4 castors: 2 fixed and 2 steering castors, lockable (steering castor height-adjustable with handle front side right)
