Manual shear PDC
sheet metalguillotinemotorized

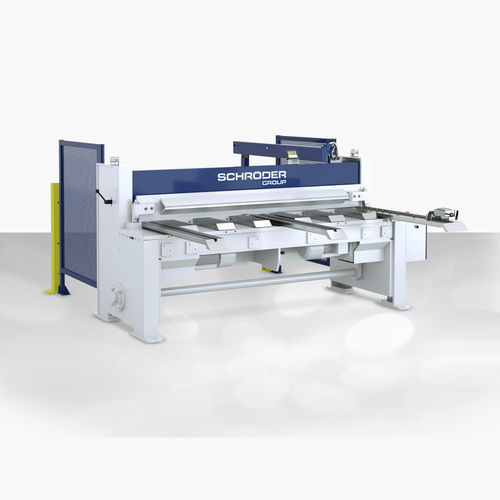

Manual shear - PDC - Schröder Group - sheet metal / guillotine / motorized

Manual shear - PDC - Schröder Group - sheet metal / guillotine / motorized - image - 2

Manual shear - PDC - Schröder Group - sheet metal / guillotine / motorized - image - 3

Manual shear - PDC - Schröder Group - sheet metal / guillotine / motorized - image - 4

Manual shear - PDC - Schröder Group - sheet metal / guillotine / motorized - image - 5

Manual shear - PDC - Schröder Group - sheet metal / guillotine / motorized - image - 6

Manual shear - PDC - Schröder Group - sheet metal / guillotine / motorized - image - 7

Add to favorites

Compare this product

Characteristics

Operation: manual
Application: sheet metal
Type: guillotine
Other characteristics: motorized
Plate thickness: 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm
(0.1 in, 0.12 in, 0.14 in, 0.16 in, 0.18 in)
Working length: 2,030 mm, 2,530 mm, 3,230 mm, 4,080 mm
(79.92 in, 99.61 in, 127.17 in, 160.63 in)

Description

The motorized guillotine PDC is a stronger version of the MHSU line. The sturdier and stiffened table and frame design as well as the “Duo-Cut” drive with two motors offer a considerably improved cutting capacity. Details Manual back gauge 750 mm, adjustable from the front, with digital readout Hold-down device with hard rubber rail to protect polished sheets Manual blade gap adjustment, two sides Extended angle gauge, right, with T-slot and scale 1,000 mm All-steel blade, double-edged 2 sheet supports with T-slot and scale 1,000 mm (3 support arms with a working length of 4000 mm) Table with exchangeable stainless steel plates with recessed grips Selector switch for single and continuous stroke From 2000 mm: with bilateral drive Footswitch Anchor plates incl. dowels Obligatory safety package in accordance with CE: Rear guarding with 3-beam light barrier incl. side protection grid
