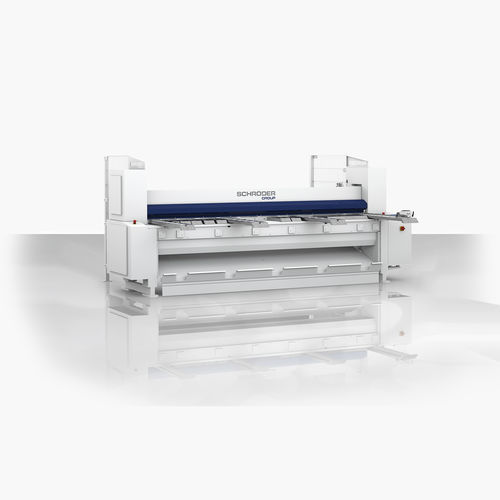

Electric shear PDC-NC

sheet metalguillotinemotorized

The motorized guillotine model PDC-NC is based on the PDC. It features an adjustable blade gap adjustment, extensive standard equipment and an attractive design that all together lead to a significant upgrade compared to the PDC. What you get here is top technology and top design that fully meet your high demands. Now new: New NC-positioning control Classic Cut: entry via touch display incremental production queue motorized blade gap adjustment motorized back gauge 6 – 750 mm with servo drive Details NC-Positioning control Classic Cut, entry via touchdisplay, motorized back gauge 6 – 750 mm with servo drive Cut counter Hold-down device with hard rubber rail to protect polished sheets Manual blade gap adjustment, two sides Extended angle gauge, right, with T-slot and scale 1,000 mm All-steel blade, double-edged 2 sheet supports with T-slot and scale 1,000 mm (3 supports arms with a working length of 4000 mm) Pneumatically controlled sheet support with sheet separator (material to the front), max. 750 mm optionally: material to the back, without sheet separator Table with exchangeable stainless steel plates with recessed grips Bilateral drives Footswitch Anchor plates incl. dowels Obligatory safety package
