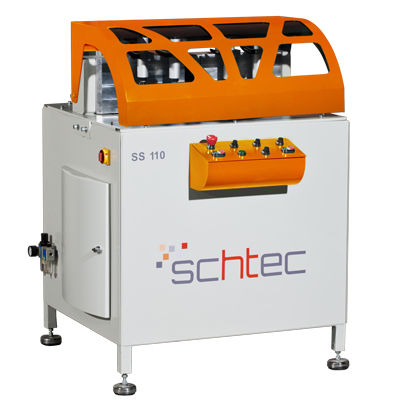

Single-head cutting machine SS 110bladefor PVCfor aluminum
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Material
- for aluminum, for PVC
- Product handled
- for aluminum profiles, for PVC profiles
- Workpiece loading
- manual loading
- Phase
- three-phase
- Configuration
- single-head
- Other characteristics
- high-precision
Description
• It cuts Aluminum and PVC profiles.
• Adjustable saw speed.
• Wide angle range from 20° to 160°
• Special fixing points for easy adjustment at 20°, 30°, 45°, 90°, 135°, 150° and 160° angles.
• Vertical pneumatic clamping pistons will fix profile in the best way.
• Right-Left profile support conveyor is provided as standard
• Cooling system to cut Aluminium profiles
• Automatic Digital Measurement System
Power Supply : 400 V ,3 Ph ,50-60 Hz
Total Power : 3 kw
Spindle Speed : 2.800 rpm
Air Pressure : 6-8 bar
Air Consumption : 90 lt./min.
Machine Height : 1.360 mm
Machine Length : 1.100 mm (with conveyor 7.000 mm )
Machine Width : 960 mm
Machine Weight : 430 kg
