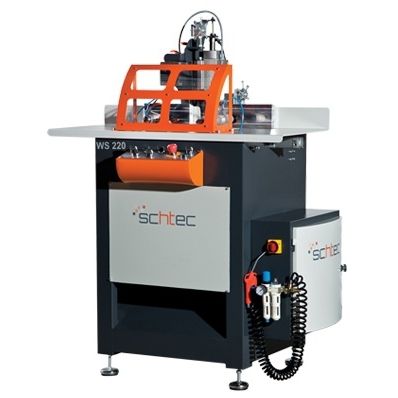

Automatic router WS 220

spindlefor PVCdrilling

• Opens water drain slots including angled, horizontal and vertical slots on PVC profiles with three motors • Has three of high speed frequency controlled motors • Motors can work independently of each other • Independently adjustable routing speed for each motor • Pneumatic profile clamping • Fixed motors, Movable main tray • Profiles can placed vertically or horizontally • Fast angle changing system for angled motors • Ventilation hole or drain slots selection Power Supply : 400 V, 3Ph,50-60 Hz Total Power Output : 1.65 kw (0,55 kw x 3) Power Output of Each Router : 0,55 kw (x3) Roter Spindle Speed : 18.000 rpm Routing length Max. : 40 mm Routing Stroke : 30 mm Air Pressure : 6-8 bar Air Consumption : 24 lt./min. Machine Height : 1.040 mm Machine Length : 550 mm Machine Width : 1.210 mm
