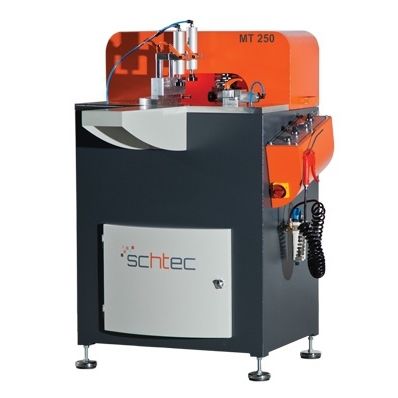

Automatic end milling machine MT 250

for aluminumfor PVCfor profiles

Standard Features • End milling of the PVC and Aluminium transom profiles with high quality and precision • Automatic end milling process • Two different series of transom profiles can be processed automatically, no time loss, no need to change the settings nor the cutter set • Vertical and horizontal pneumatic profile clamping system • Adjustable saw blade feed speed • Easy working at different angles Optional ; • Cooling system for Aluminium profiles • Hydro-pneumatic system for Aluminium profiles Technical Informations Power Supply : 400 V, 3 ph, 50-60 Hz Power Output : 1,1 kw Spindle Speed : 3.000 devir / dak. Max. Cutter Diameter : 160 mm Max. Routing Height : 90 mm Max. Routing Dept. : 30 mm Max. Profile Width : 120 mm Max. Profile Height : 90 mm Air Pressure : 6-8 bar Air Consumption : 20 lt. /min. Machine Height : 1.240 mm Machine Length : 1.070 mm Machine Width : 860 mm Machine Weight : 125 kg
