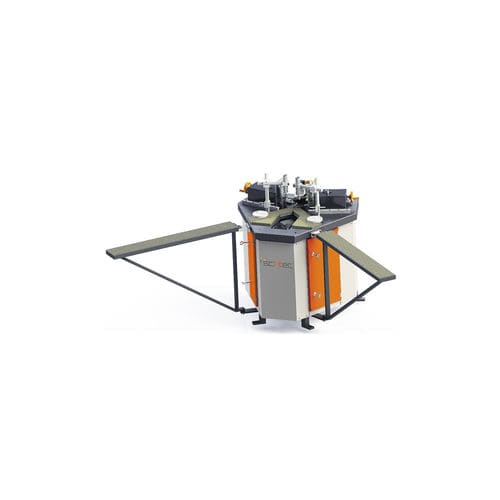

Aluminum profile corner crimping machine CP 290

for window and door framesautomaticelectric

Standard Features • Joins Aluminium profiles corners by pressing them together • Hidropneumatic high pressure power system, ( easy maintenance ) • Ability to work with different profiles sizes • Small frames can be joined by specially designed clamping unit • Quick blade changing system • The front set square system is designed for easy profile loading and unloading • Pressing process is done step by step with a foot pedal • Support arms are included as standard Technical Informations Power Supply : 220 V , 1 Ph, 50-60 Hz Power Output : 2.2 kW, 5.5A Side Cylinder Pressing Power : 7 ton/cm² Upper Cylinder Pressing Power : 3 ton/cm² Air Pressure : 6-8 bar Air Consumption : 60 lt. /min. Max. Profile Height : 220 mm Max. Knives Pressing Height : 190 mm Min. Frame Size : 350 mm x 350 mm Machine Height : 1.300 mm Machine Length : 900 mm (1.760 mm with support arms) Machine Width : 1.200 mm (2.525 mm with support arms) Machine Weight : 575 kg
