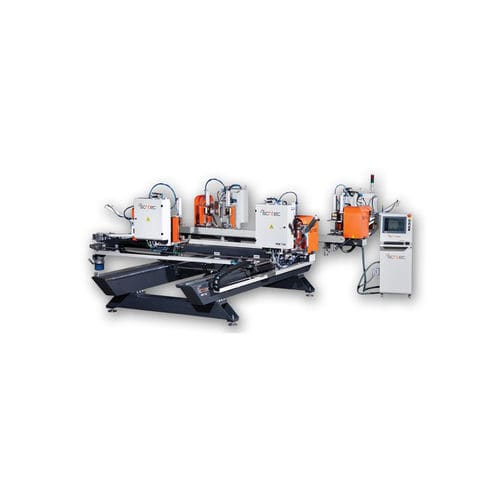

Automatic welding machine WM 750

for profilesfor PVCCNC

Standard Features • Welds four corners of PVC profiles simultaneously at 90 °with high sensitivity and strength • Machine axes are moved by Servo motor system (3 Servo motor controlled axes) • Specially developed parallel welding technology that improves welding quality and strength • Internally engineered design for automatic selection of 0.2 and 2 mm welding range • Beckhoff brand, high performance industrial PC operated by Windows XP Embedded. Fanless motherboard system works between 0°C – 55°C, and it comes with a 15” touch screen display • Data transfer via ethernet network connection, wireless network connection or USB interface • Welding parameters are defined by the user for every individual profile(up to 10,000 profiles) • Welding temperature, melting and welding times can be adjusted individually for each profile type. • All machine axes are moved by hardened steel ball screw which provides accuracy and durability. • Depending on the torque values of the servo motors, melting the lengths up to 2 mm and bringing them to the desired size • PC controlled (PID) heat control system to obtain strong welding results in compliance with standards. • Summer / winter working mode is automatically selected,so the temperature adjustment is done easily • Horizontally placed strong mechanical heating plates distribute heat homogeneously without being affected from difficult working conditions. • Easy and fast change for teflons by specially designed roll up teflon system. • Easy and fast change for welding moulds • Works effectively by compressed air supplied to the system • White or colour profiles can be weld with the same sensitivity
